In one of the most modern radiation therapy centres in Germany, all product groups are used in an area of around 300 square metres
EXPLORIS EcoPlus®
Sustainable safety and cost-effectiveness
Bench type fume cupboards are available in EcoPlus® variants and can be retrofitted afterwards
EXPLORIS EcoPlus®
Sustainable safety and cost-effectiveness
Bench type fume cupboards are available in EcoPlus® variants and can be retrofitted afterwards
Safety through flow-optimised geometry without complicated auxiliary air flow technology
Operation with exemplary low 250 m³/h per linear metre of fume cupboard width
Bench type fume cupboards are available in EcoPlus® variants and can be retrofitted afterwards
Reduces the operating costs of the fume cupboard by up to 30 percent depending on the room conditions
Certified according to DIN EN 14175 Part 2 and Part 3
Durability and environmentally friendly disposal thanks to the material steel
Potential savings
Per fume cupboard (1.500 mm) after an operating time of…
Conventional fume cupboard
1 hour
600 m³ / 0,48 €
1 day (8 hours)
4.800 m³ / 3,84 €
1 year (250 days at 8 hours per day)
1.200.000 m³ / 960,00 €
1 year (250 days at 24 hours per day)
3.600.000 m³ / 2.880,00 €
EXPLORIS EcoPlus®
1 hour
600 m³ / 0,48 €
1 day (8 hours)
3.000 m³ / 2,40 €
1 year (250 days at 8 hours per day)
750.000 m³ / 600,00 €
1 year (250 days at 24 hours per day)
2.250.000 m³ / 1.800,00 €
Savings with EXPLORIS EcoPlus®
1 hour
0,18 €
1 day (8 hours)
1,44 €
1 year (250 days at 8 hours per day)
360,00 €
1 year (250 days at 24 hours per day)
1.080,00 €
Dimensions in mm / Volume flow rate in m³/h
Assumption: 1,000m³ of conditioned laboratory air costs €0.80.
| Width | 1200 | 1500 | 1800 | 2000 | 2100 |
|---|---|---|---|---|---|
| Front height | 2300/2550 | 2300/2550 | 2300/2550 | 2300/2550 | 2300/2550 |
| Chamber height | 2300/2600 | 2300/2600 | 2300/2600 | 2300/2600 | 2300/2600 |
| Depth | 900 | 900 | 900 | 900 | 900 |
| Usable space width | 1100 | 1400 | 1700 | 1900 | 2000 |
| Usable space height | 1115/1415 | 1115/1415 | 1115/1415 | 1115/1415 | 1115/1415 |
| Usable space depth | 760 | 760 | 760 | 760 | 760 |
| Work height | 900 | 900 | 900 | 900 | 900 |
| Minimal permissable volume flow rate* | 300 | 375 | 450 | 530 | 530 |
| Specified volume flow rate | 360 | 450 | 540 | 630 | 630 |
| Maximum permissible volume flow rate | 1500 | 1500 | 1500 | 1500 | 1500 |
Dimensions in mm / Volume flow rate in m³/h
* Alarm value
* Alarm value
Your work is what matters
When selecting a fume cupboard, the most important considerations are the activities you do and substances you use.
Organic solvents
Weak acids
Diluted mineral acids
Cold concentrated mineral acids
Hot concentrated mineral acids
Hydrofluoric acid
Radioactive substances
High thermal load
= Suitable
= Occasional use
= Not suitable
Product data
The ventilation system offers further savings potential: Smaller pipe cross-sections and smaller dimensioned fans can save up to 20 percent on investment costs. Afterwards you will find all information on dimensions, potential savings and volume flow.
Fume cupboard control TouchTronic
Easy operation of fume cupboards
As a control element for a wide range of functions, the new TouchTronic combines fume cupboard control and monitoring with high computing power. The combination of work steps in one unit saves time and also protects everyone else in the lab: warnings can be easily shown on the display. Even when wearing gloves, the IPS touch screen recognises the touch.
Fume cupboard control TouchTronic
Easy operation of fume cupboards
As a control element for a wide range of functions, the new TouchTronic combines fume cupboard control and monitoring with high computing power. The combination of work steps in one unit saves time and also protects everyone else in the lab: warnings can be easily shown on the display. Even when wearing gloves, the IPS touch screen recognises the touch.
In use - have a look at our references
Laboratory for the production and testing of high-quality additives for the paint and varnish industry.

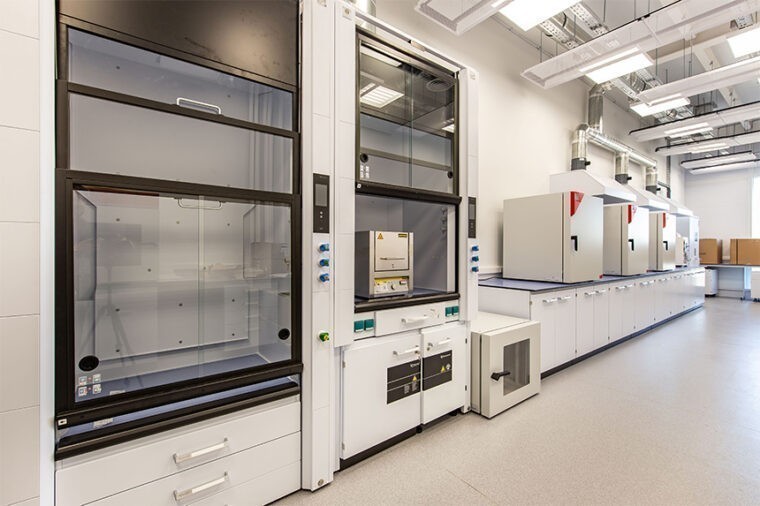

Köttermann steel laboratory at the petrochemical company Sibur, which minimises the fire load and maximises the useable space.
